SPECIFICATIONS
APP: Guard Viewer
Aperture: F`1.O-3.5
Audio: Support 2-way Audio
Brand Name: NA
Customized support: Online Technical Support,Customized Logo,OEM, ODM
Data Storage Options: Cloud,Micro SD card
Function: Two-Way Audio,Pan-Tilt,Night Vision,Waterproof / Weatherproof,Built-In Siren
IP Rating: IP66
IR Distance: Dual Light(White Light+IR LED Light)
Keyword: PTZ
Lens: 4.7-94mm,4.7-94mm
Material: Metal & Plastic
Model Number: PTZIP46820E-SA
Pan/Tilt: Pan:0°~360°Tilt:0°~90°
Pixels: 6 MP,8 Mp
Place of Origin: Guangdong, China
Resolution: 8MP
Sensor: CMOS
Special Features: Human Motion Tracking,Night Vision,Motion Detection,Waterproof / Weatherproof,Built-In Siren,Pan-Tilt,Two-Way Audio,Human Detection
Storage: 512GB
Style: PTZ Camera
Video Compression: H.264/H.265/h265+
Video Compression Format: H.265+
Warranty: 2 Years
Waterproof: IP66

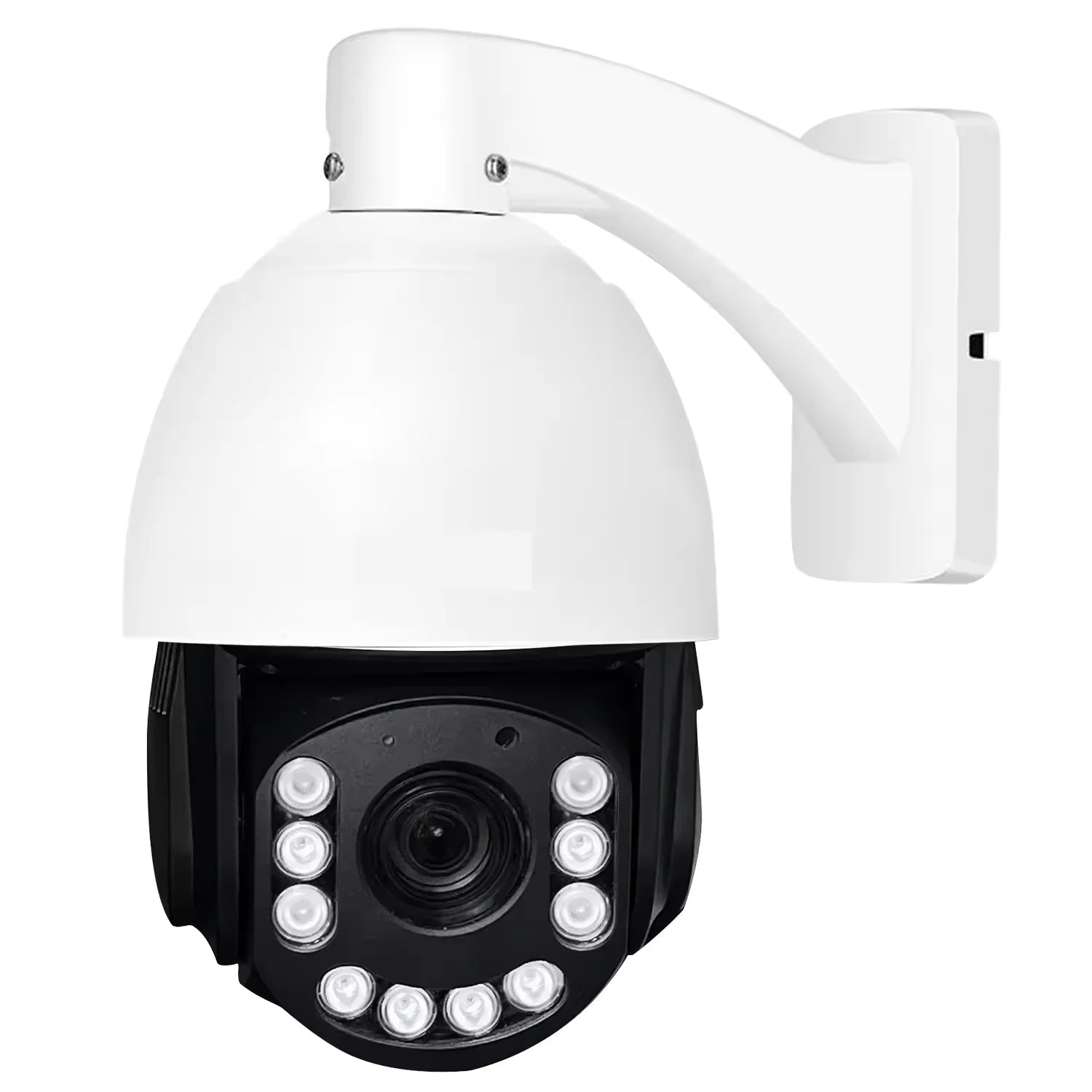

8MP 20X Zoom POE IP PTZ Security Camera

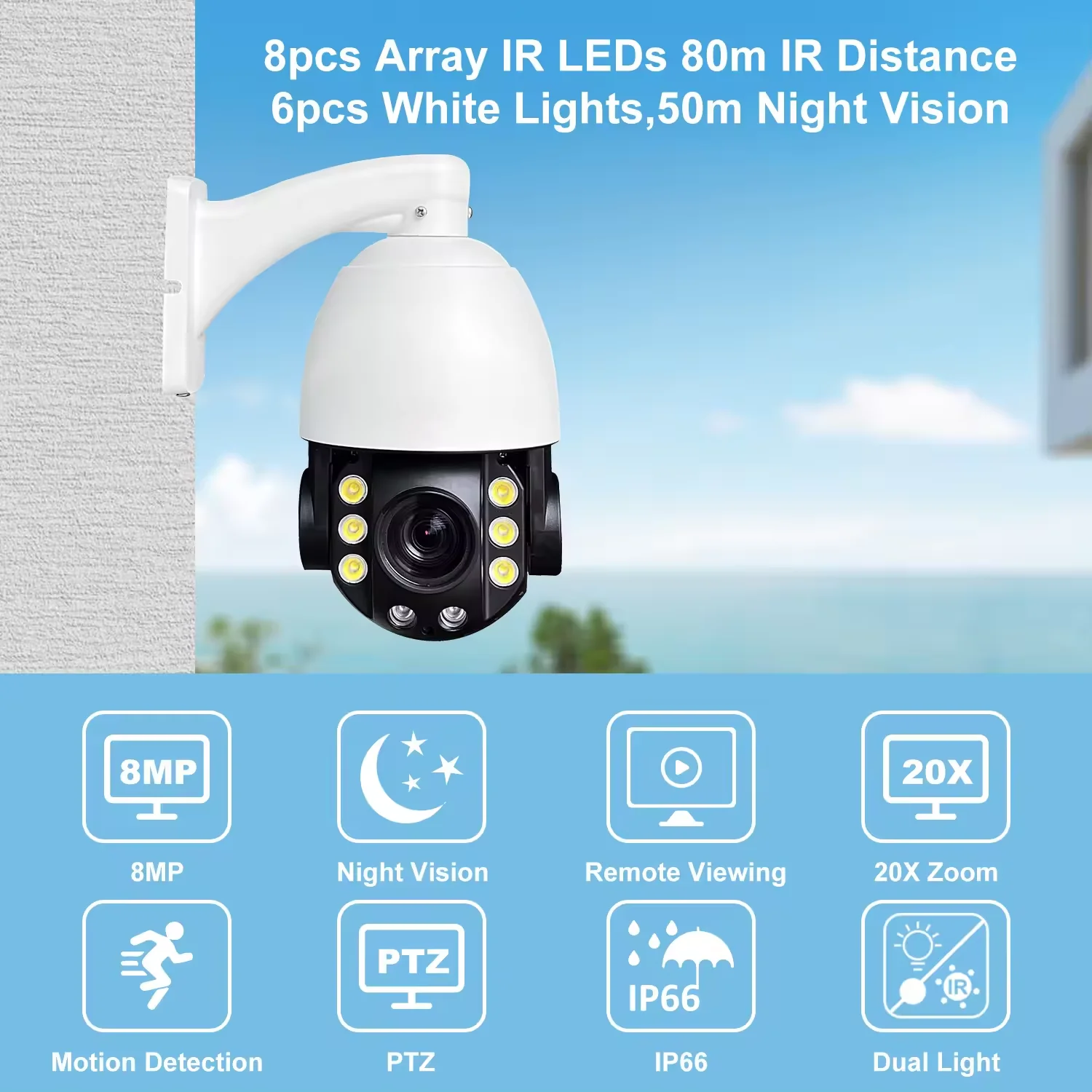

①8MP 20X Zoom POE IP High Speed PTZ Outdoor/ Indoor Security Camera, 2-ways audio, 6pcs Array IR LEDs,100m IR
distance 4 pcs whtie lights,up to 50m, Compatible with HK NVR, and other Third-Party NVRs.
②Camera model number: PTZIP46820ED-SU
③Zoom: 20X zoom, Built-in SD Card slot support up tp 512GB local storage
④Network Connection: P2P and QR Code
⑤Client App: Danale
⑥For bulk purchases and kit customize, please contact us before buying
⑦Available in CN warehouse.
⑧3 business working days process time in CN
Support Dual light
When there is no one or vehicle within the monitoring range, the monitoring displays a black and white screen; When a person or vehicle enters the monitoring range, the monitoring automatically displays a color picture.
Support Human Vehicle Detection 2.0
Human Vehicle Detection 2.0 detects and classifies moving objects in the picture, and only detects people and vehicles in the picture, greatly reducing the false alarm rate.
High quality imaging with 8MP resolution
8MP high resolution, much clearer than 1080p and 4MP. All cameras provide incredibly bright and in real color, which enables you to see all objects very clearly.

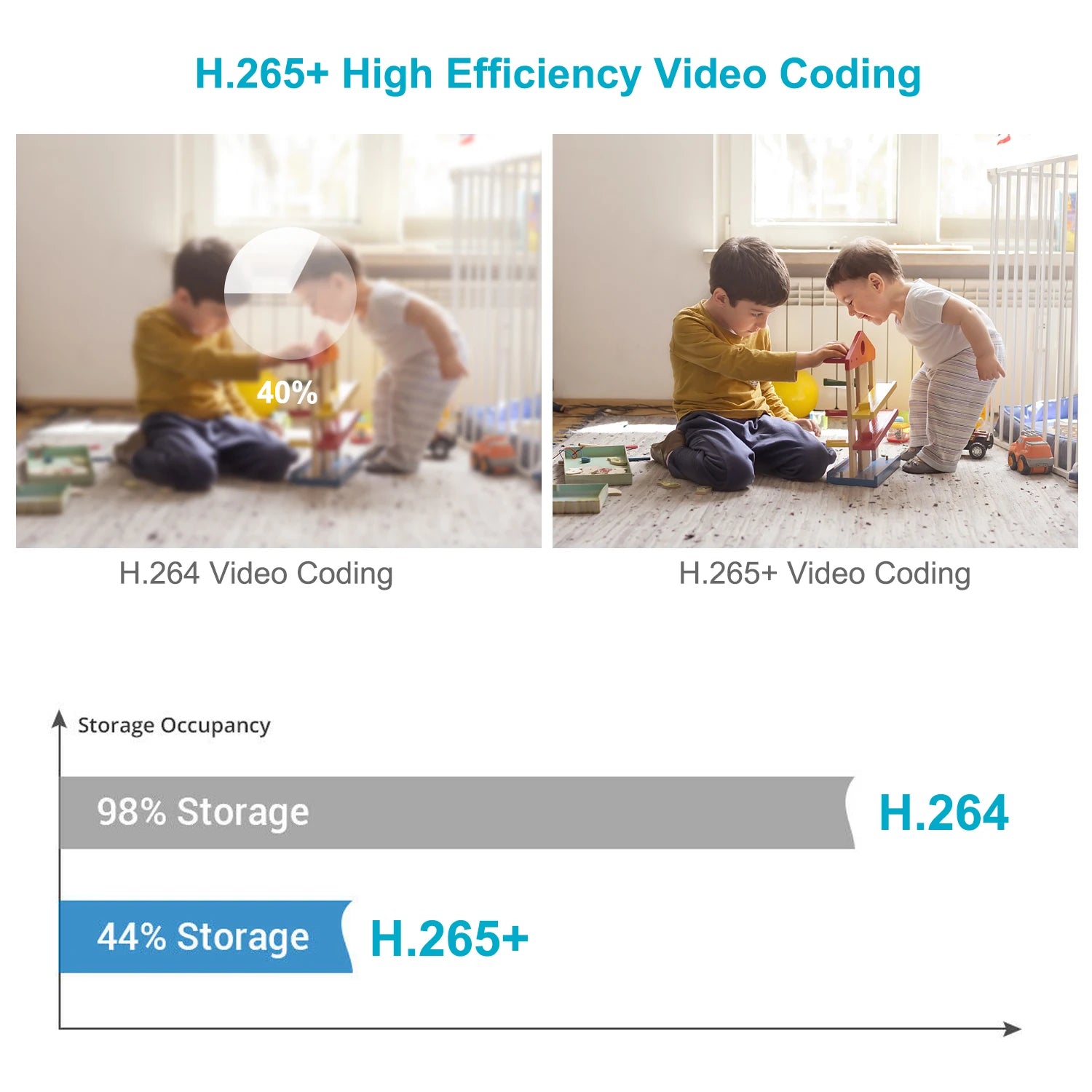

Support H.265+/H.265/H.264
This camera support four Video Compression,the maximum support is H.265+, which can greatly compress storage space.
Support P2P Remote Viewing, Anytime, from Anywhere
You can connect with the App for Videolink.
No matter where you are, you can remotely access the camera to see live streaming and stay connected
Installation Instructions
Q: Does this camera work with Hikvision NVR ?
A: Featured with Hikvision private agreement, this camera can plug & play with Hikvision NVR. (Adding Method: Plug & Play, Protocol: Hikvision ).
Q: What kind of power adapter does this camera work with?
A : This Anpviz 8MP PTZ Camera works with PoE injector, 802.3af standard, 48V for power and video transmission. If you don't want PoE injector, you can use a 12V 1A power adapter.
Q: What about the range of work temperature?
A : Usually the working temperature is -30~60 ℃.
But don't worry, it can work well in winter because when the camera is running, the temperature will rise. Just remember that, before you set the camera outdoor, you need to keep the camera
running for half an hour at home.
Q: Is there SD Card slot?
A: Yes,it has MicroSD Card Slot up to 512GB.
Q: Will this camera work with DaHua or other brand NVR?
A: Yes, it could work with DaHua or other brand NVR by onvif Protocol. Our cameras are setting default to H.265. If your NVR only support H.264. Please modify the cameras to H.264 accessing web interfact firstly.
Q: Can you zoom from the app?
A: This PTZ camera have zoom feature, and it`s 4.7-94mm,20x Optical Zoom, Auto Focus.
Q: Does this camera come with audio?
A: Yes, this camera built-in Internal Microphone!
Q: Does this camera have feature motion detect activate record on & off for NVR?
A: Yes, It supports Human Vehicle Detection.
Q: Why does the nvr not show image after adding your ip camera?
A: Please make sure your nvr support H.265 video compression and 6MP resolution, if your NVR only support h.264 please switch the camera to h.264 mode on webpage, if your nvr supports 8mp below resolution,please turn down the camera's resolution on webpage
Q: Is this camera compatible with Google Chrome web browser?
A: Yes, this camera is compatible with Google Chrome, IE, firefox, microsoft edge,safari
Q: Can I use this camera with my NAS ?
A: Yes, our 8MP Security PTZ Camera can work with Milestone, Synology NSA, Qnap NAS, Ispy, Blue Iris..
