SPECIFICATIONS

CPU Support: LGA1700 Socket

Certification: FCC,CE,ROHS

Condition: 100% Original Brand

Deliver Time: 5 workdays

Delivery: DHL EMS FEDEX ARAMEX UPS POST

Graphics: Integrated Graphics Prosessor

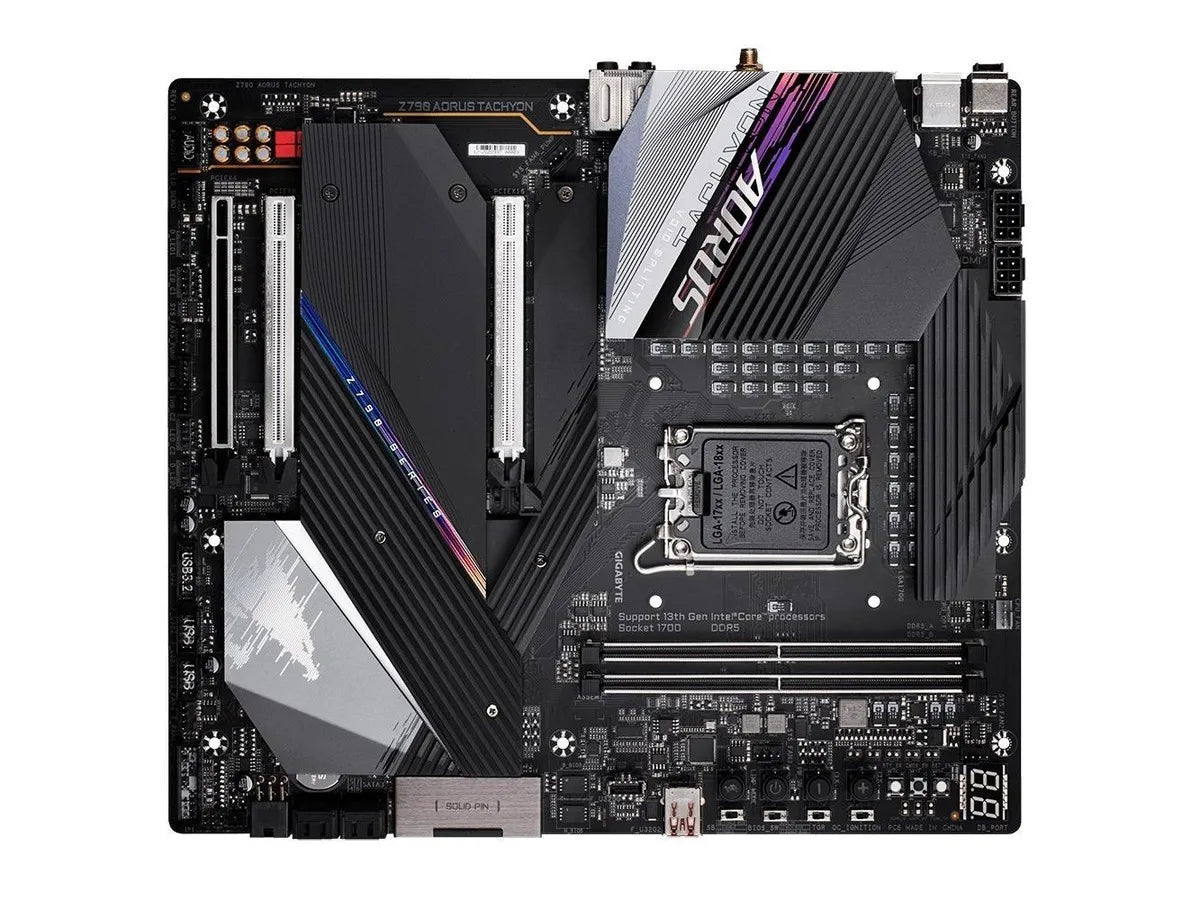

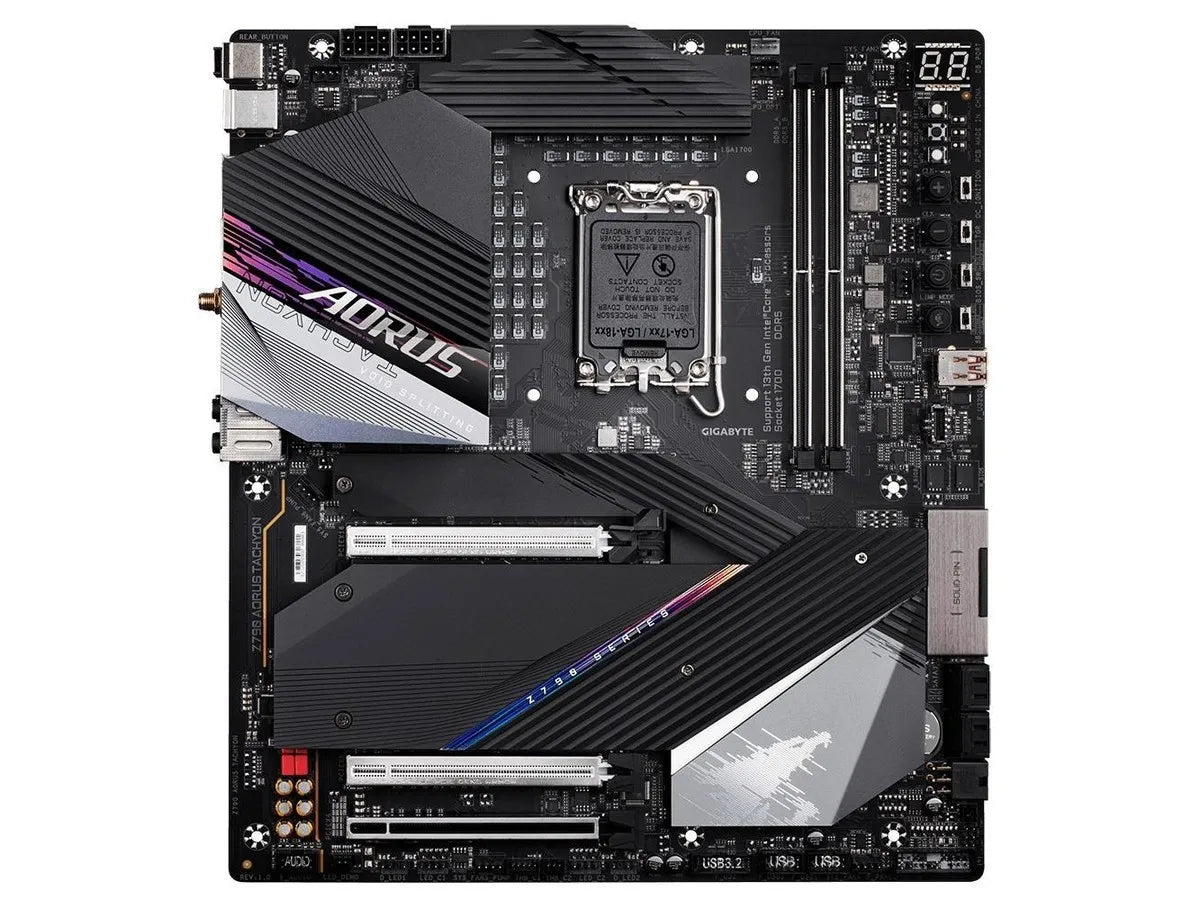

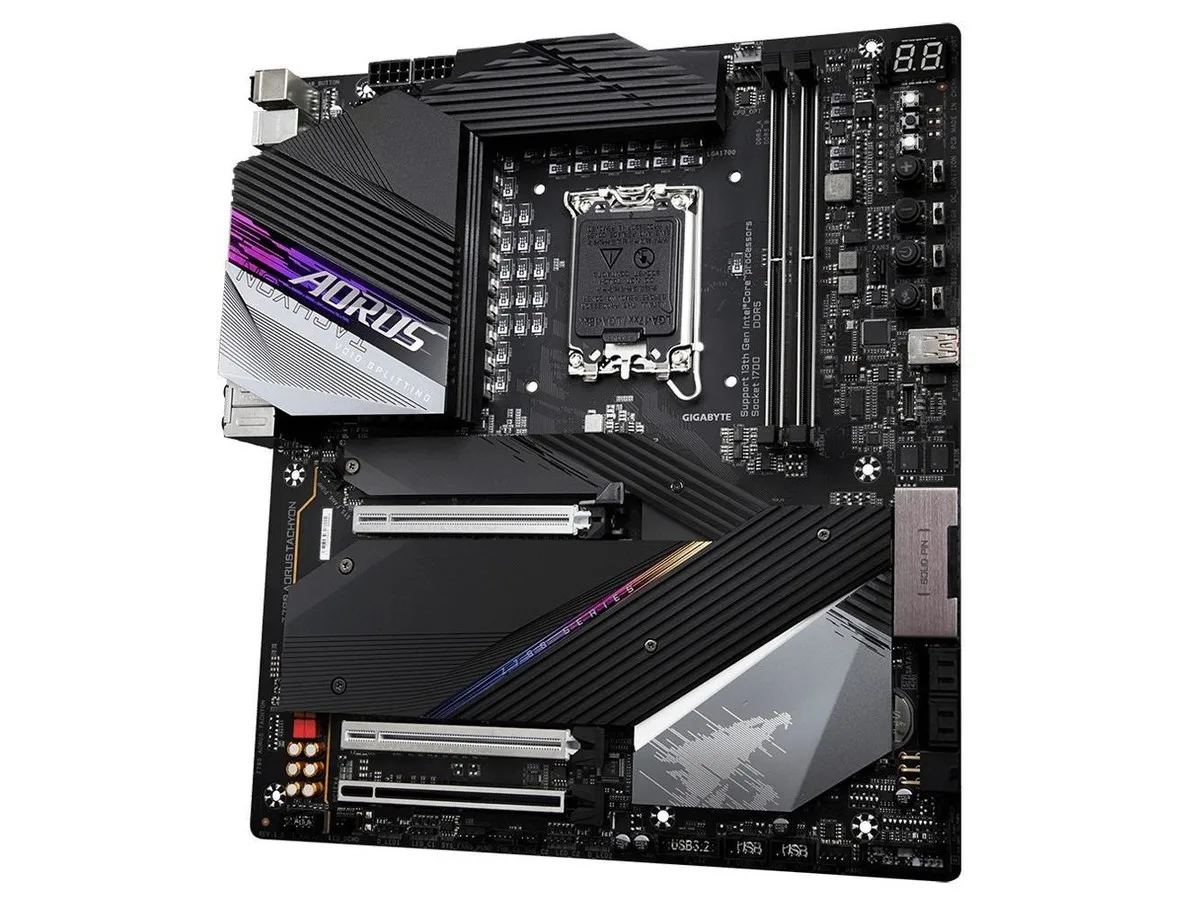

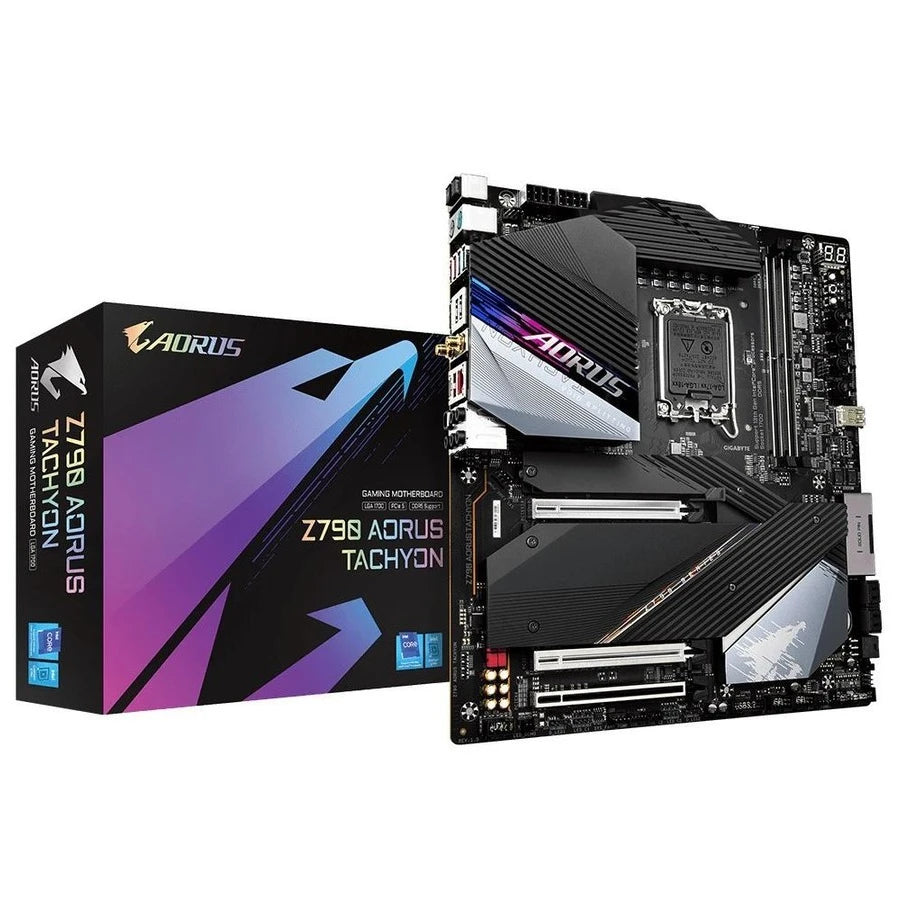

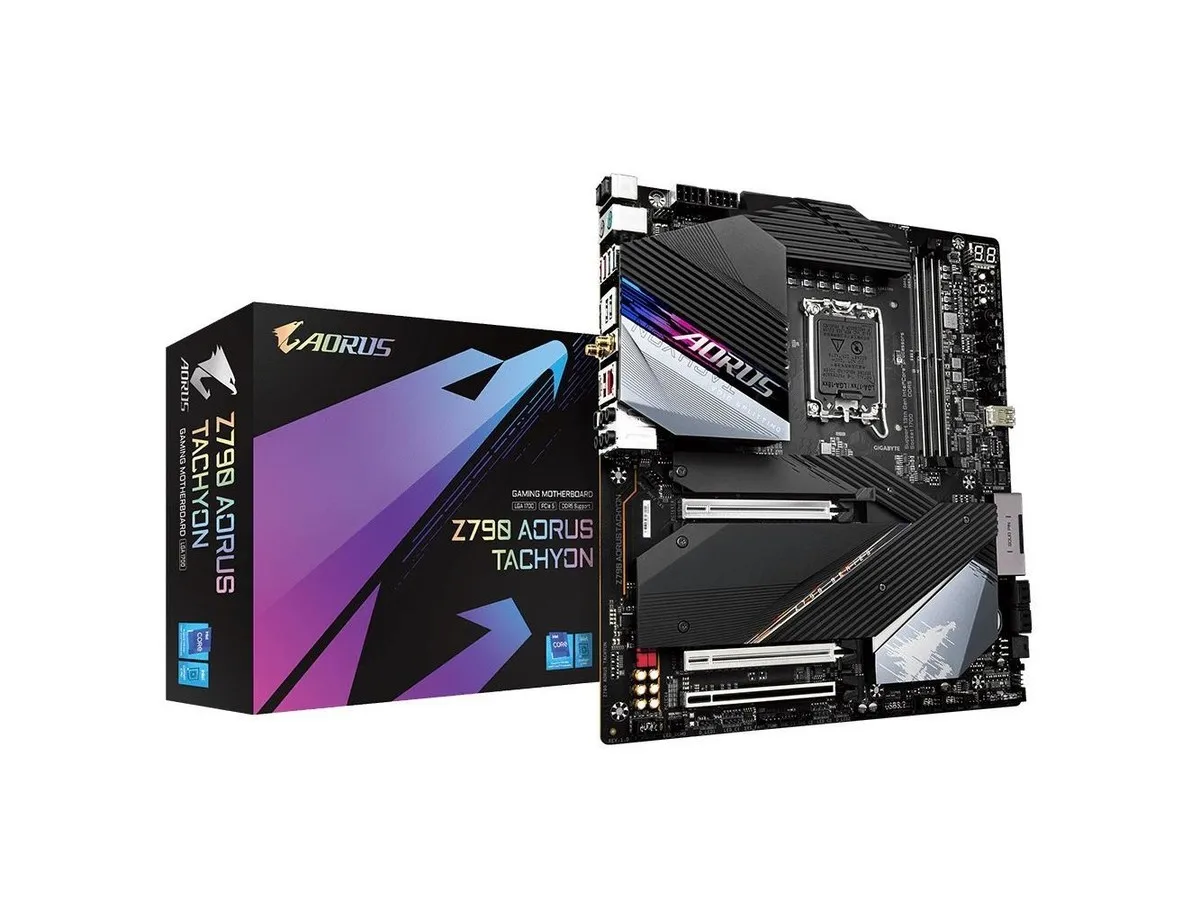

Model: Z790 AORUS TACHYON

Product Name: Z790 AORUS TACHYON

Test condition: 100% tested before shipping

Warranty: 3 Years

application: Desktop

brand name: For Gigabyte

chipset: Z790

chipset manufacturer: Intel

cpu type: Intel

form factor: ATX

fsb / ht: 1066/1333/1600MHZ, 4 DIMMs, Dual Channel DDR5

graphics card type: Non-Integrated

hard drive interface: SATA

item condition: New

maximum ram capacity: 128 GB

memory bank: 2 DDR3 DIMM

memory channel: Double

memory type: DDR4

package: Yes

place of origin: Guangdong, China

ports: DVI,USB 2.0,USB 3.0,PCI-E 3.0

private mold: No

products status: New,Stock

socket type: LGA 1700

with cpu: No

Motherboard chip
Integrated chip sound card/network card
Main chipset Intel Z790
Chipset description using Intel Z790 chipset
Audio chip integration Realtek ALC1220-VB channel audio chip
Network card chip onboard 2.5GbE network card
Processor specifications
CPU Type Thirteenth Generation Core
CPU slot LGA 1700
Memory specifications
Memory Type 2 × DDR5 DIMM
Maximum memory capacity 64GB
Memory description supports dual channel DDR5 8333 (O.C.)/8000 (O.C.)/7950 (O.C.)/7900 (O.C.)/7800 (O.C.)/7600 (O.C.)/7400 (O.C.)/7200 (O.C.)/7000 (O.C.)/6800 (O.C.)/6600 (O.C.)/6400 (O.C.)/6200 (O.C.)/6000 (O.C.)/5800 (O.C.)/5600 (O.C.)/5400 (O.C.)/5200 (O.C.)/4800/4000MHz memory
Storage expansion
PCI-E standards PCI-E 5.0, PCI-E 3.0
PCI-E X16 slots 2
PCI-E X4 slot 1
Storage interface 4 × M.2 Interface × SATA III interface

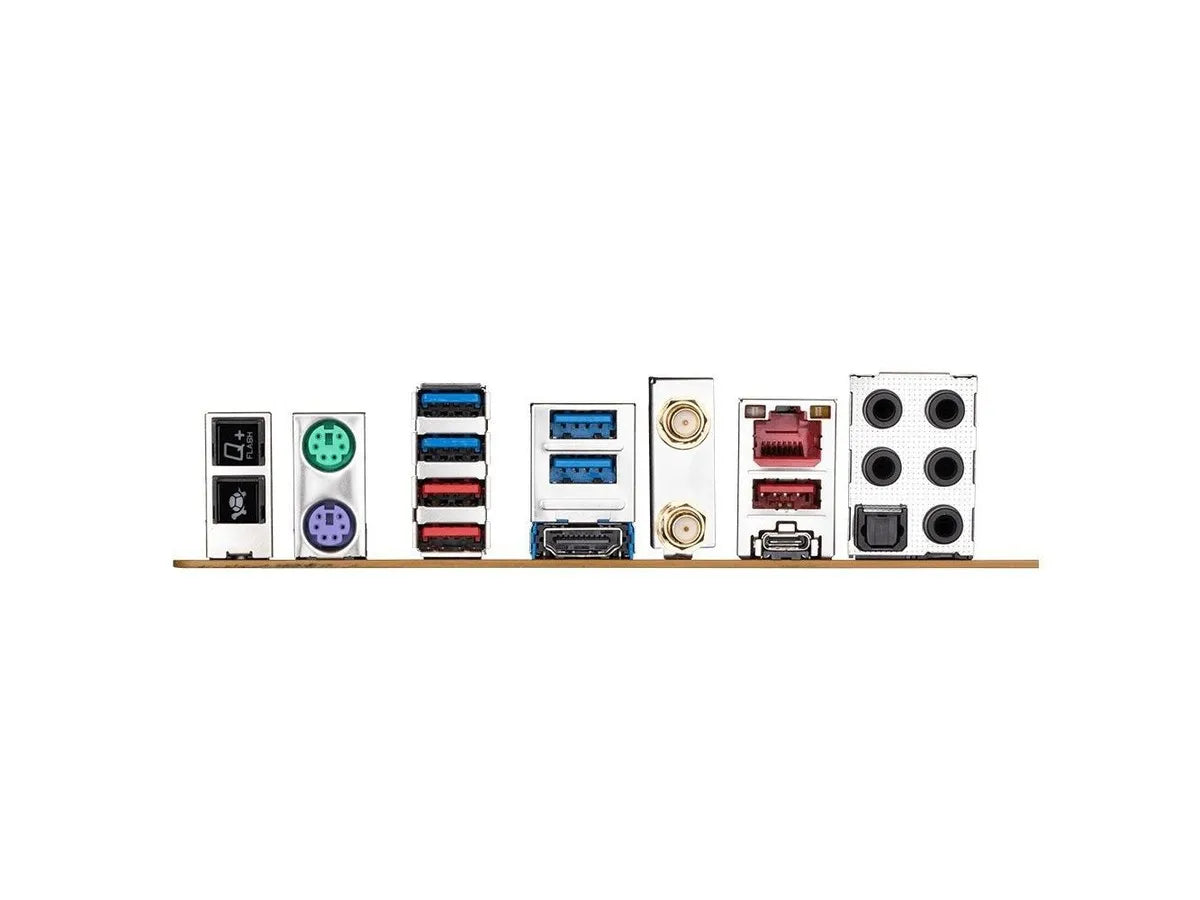

I/O interface
USB (backplane) 1 × USB3.2 Gen2x2 Type-C interface
three × USB3.2 Gen2 interface
four × USB3.2 Gen1 interface
USB (built-in) 1 × USB Type-C interface
one × USB 3.2 Gen 2 interface
one × USB 3.2 Gen 1 interface
two × USB 2.0 interface
Video interface 1 × HDMI interface
Power interface: two 8-pin and one 24-pin power interface
Other interfaces 1 × PS/2 mouse interface, 1 × PS/2 keyboard interface, 1 × RJ45 network interface, 2 × SMA antenna interface, 5 × Audio interface, 1 × Optical fiber interface
Plate type
Main board type E-ATX board type
Overall dimension 30.5 × 27cm
Other parameters
RAID function supports RAID 0, 1, 5, 10
Wireless Features Wireless: Supports 802.11 axWiFi standard
Fan Fault Warning
Intelligent fan control
Wireless: supports 802.11A/B/G/N/AC /axWiFi standards
